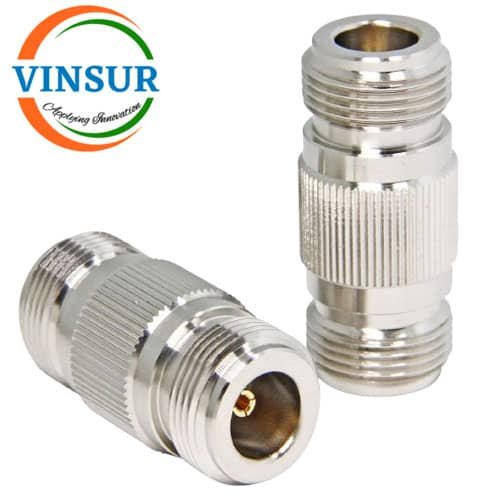

41120121 –RF ADAPTER -50 OHMS N FEMALE STRAIGHT N FEMALE STRAIGHT ADAPTERS
P/N :-41120121
- RF Adapter
- N-Type Adapters
- N-Type to N-Type Adapters
- Female to Female
-  50Ω
- Max Frequency (GHz) -DC~6GHz
Click here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | N-Type |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Adapter Side 2 Series | N-Type |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Body Plating | Nickel |
| Body Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Max Frequency (GHz)Â Â Â Â Â | DC to 6GHz |
| VSWR | ≤1.25 |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | +165 |
