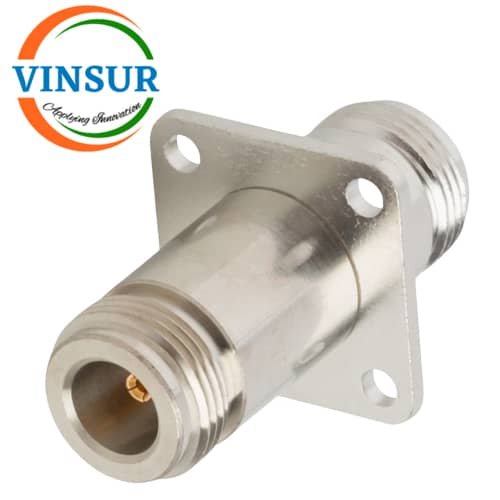

41124121 — RF ADAPTERR – 50 OHMS N-TYPE FEMALE TO N-TYPE FEMALE STRAIGHT 4-HOLE FLANGE ADAPTERS
P/N :-41124121
- RF Adapter
- N-Type Adapters
- N-Type to N-Type Adapters
- Female to Female
-  50Ω
- Max Frequency (GHz) -DC~11GHz
Click here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | N |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Adapter Side 2 Series | N |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Silver |
| Contact Material | Brass |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Max Frequency (GHz)Â Â Â Â Â | DC to 11GHz |
| VSWR(Max) | 1.2:1 Max |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +85°C |
