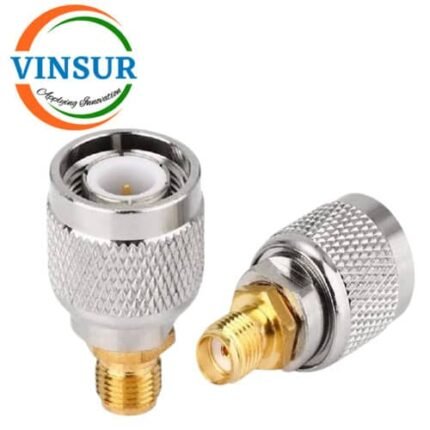

41210421 — RF ADAPTER – 50 OHMS, SMA FEMALE TO TNC MALE STRAIGHT ADAPTER
P/N :-41210421
- RF Adapter
- SMA Adapters
- SMA to TNC Adapters
- Female to Male
-  50Ω
- Max Frequency (GHz) -DC~11GHz
Click Here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | SMA |
| Gender1 | Jack(Female) |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Adapter Side 2 Series | TNC |
| Gender2 | Plug(Male) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Max Frequency (GHz)Â Â Â Â Â | DC to 11 GHz |
| Voltage Rating                | 335 Veff @ Sea Level |
| VSWR(Max) | ≤1.20 @11GHz |
| Min. Temp. (Celsius) | -55°C |
| Max. Temp. (Celsius) | +155°C |
