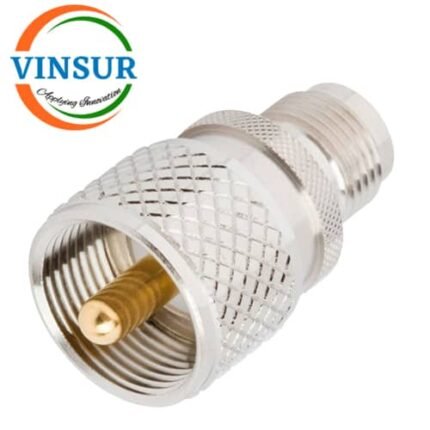

41220C11 — RF ADAPTER – 50 OHMS TNC FEMALE TO UHF MALE STRAIGHT ADAPTER
P/N :-41220C11
- RF Adapter
- TNC Adapters
- TNC to UHF Adapters
- Female to Male
-  50Ω
- Max Frequency (GHz) -DC~ 2GHz
Click here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | UHF |
| Gender1 | Plug(Male) |
| Orientation | Straight |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Adapter Side 2 Series | TNC |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Mounting Feature | – |
| Max Frequency (GHz)Â Â Â Â Â | DC to 2Ghz |
| VSWR | ≤1.2 |
| Min. Temp. (Celsius) | -45°C |
| Max. Temp. (Celsius) | +125°C |
