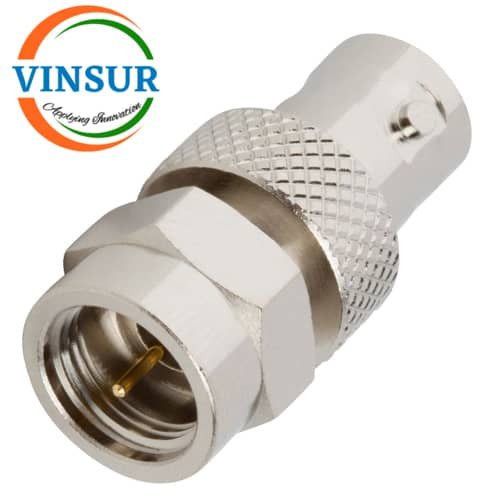

41326B11 — RF ADAPTERS – BNC FEMALE TO F-TYPE MALE STRAIGHT ADAPTER
P/N :-41326B11
- RF Adapter
- BNC Adapters
- BNC to F-Type Adapters
- Female to Male
- 75Ω
- Max Frequency (GHz) -DC~ 2GHz
Click here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | BNC |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Mounting Features | – |
| Adapter Side 2 Series | F-Type |
| Gender2 | Plug(Male) |
| Orientation | Straight |
| Mounting Features | – |
| Impedance (Ohms) | 75 |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 2 GHz |
| VSWR(Max) | 1.5:1 |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +85°C |
