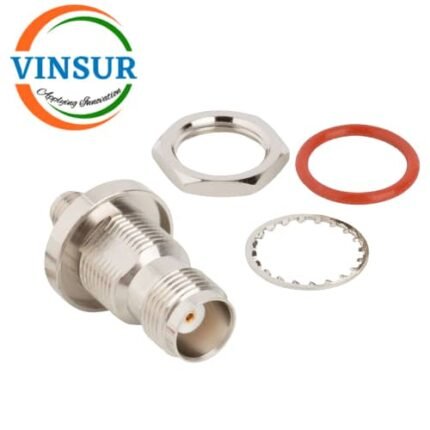

41421221 — RF ADAPTER – 50 OHMS, SMA FEMALE TO TNC FEMALE STRAIGHT BULKHEAD ADAPTER
P/N :-41421221
- RF Adapter
- SMA Adapters
- SMA to TNC Adapters
- Female to Female
-  50Ω
- Max Frequency (GHz) -DC~11GHz
Click Here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | SMA |
| Gender1 | Jack(Female) |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Adapter Side 2 Series | TNC |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Body Finish | Brass |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Insulator Material | PTFE |
| Coupling Mechanism | Threaded |
| Mounting Feature | Bulkhead |
| Max Frequency (GHz)Â Â Â Â Â | 11 |
| VSWR | ≤1.25 |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | +165 |
