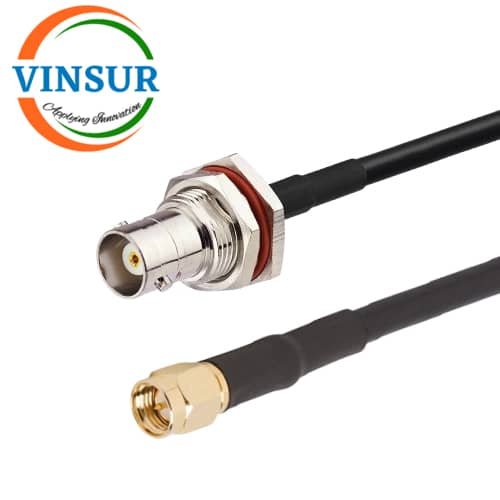

BNC Female Straight Bulk head to SMA Male Straight for RG58 Cable of Length 12″ Inch
P/N : VSW250048-CA
- RF Cable Assembly
- BNC Cable Assembly
- BNC to SMA
- RG58 Cable
- BNC Female to SMA Male
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | BNC |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Material | Nickel |
| Body Finish | Brass |
| Contact Finish | Gold |
| Mounting Feature | Bulk Head |
| RF Series 2 | SMA |
| Gender 2 | Plug (Male) |
| Orientation 2 (body) | Straight |
| Body Material | Gold |
| Body Finish | Brass |
| Contact Finish | Gold |
| Frequency | DC to 4Ghz |
| Impedance | 50Ω |
| VSWR | ≤1.2 |
| CABLE SPECIFICATION | |
| Cable Type | RG58 |
| Cable Diameter | 4.95mm ± 0.20 |
| Max Frequency | 3 GHz |
| Impedance | 50Ω |
| Cable Length | 12” (30.48 cm) |
| Temperature Rating | -40°C ~ +85°C |
