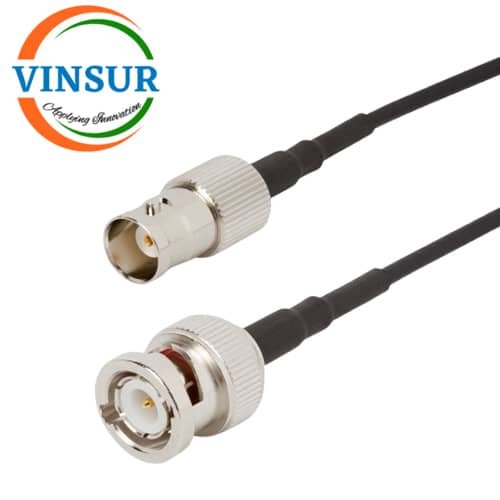

BNC Male Straight to BNC Female Straight for RG174 Cable of Length 1M
P/N : VSW250032-CA
- RF Cable Assembly
- BNC Cable Assembly
- BNC to BNC
- RG174 Cable
- Male to Female
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | BNC |
| Gender | Plug (Male) |
| Orientation1 (body) | Straight |
| Body 1 | Brass, Nickel Plating |
| RF Series 2 | BNC |
| Gender 2 | Jack (Female) |
| Orientation 2 (body) | Straight |
| Body 2 | Brass, Nickel Plating |
| Frequency | DC-4Ghz |
| Impedance | 50 Ω |
| VSWR | ≤1.2 |
| CABLE SPECIFICATION | |
| Cable Type | RG174 |
| Cable Diameter | 4.95mm ± 0.20 |
| Max Frequency | 3 GHz |
| Impedance | 50 Ω |
| Weight | 0.040 Kg/m |
| Cable Length | 1Meter |
| Temperature Rating | -40°C ~ +85°C |
