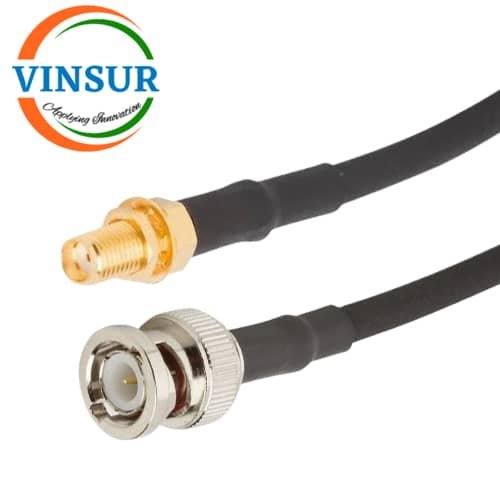

BNC Male Straight to SMA Female Straight Bulkhead for LMR200 Cable of Length 1M
P/N : VSW250102X-CA
- RF Cable Assembly
- BNC Cable Assembly
- BNC to SMA
- LMR200 Cable
- BNC Male to SMA Female
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | BNC |
| Gender | Plug (Male) |
| Orientation1 (body) | Straight |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Material | Brass |
| Contact Finish | Gold |
| RF Series 2 | SMA |
| Gender 2 | Jack (Female) |
| Orientation 2 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Frequency | DC to 8Ghz |
| Impedance | 50Ω |
| VSWR | ≤1.2 |
| CABLE SPECIFICATION | |
| Cable Type | LMR200 |
| Cable Diameter | 4.95mm |
| Suitable for frequencies | DC to 8Ghz |
| Impedance | 50Ω |
| Length | 1 meter |
| Temperature rating | -40 / +85°C |
