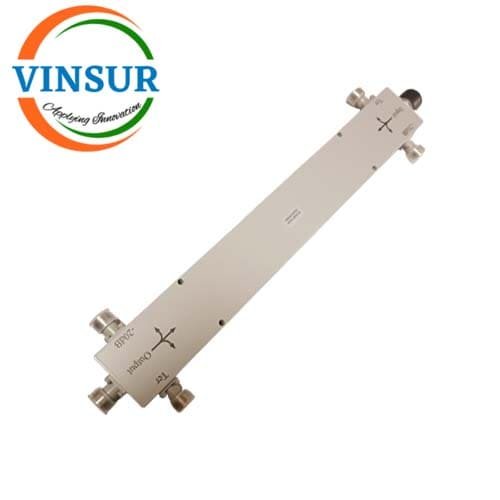

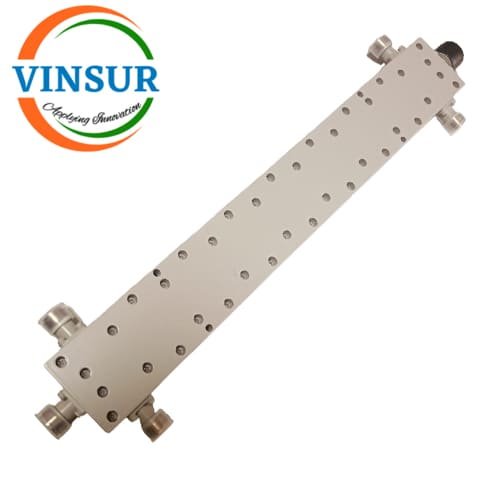

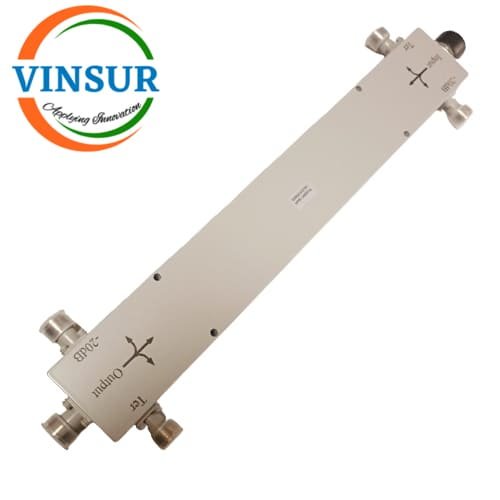

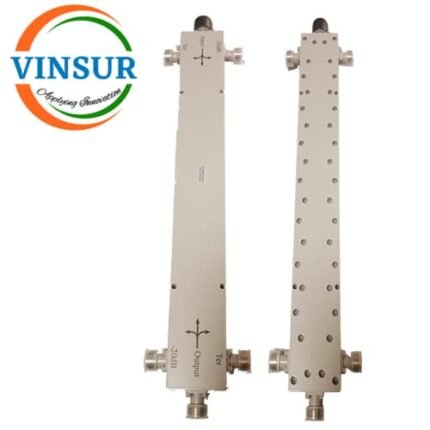

Directional Coupler (4-port 800-1200MHz 20dB)
P/N : VSW260020-DC
- Directional Coupler
- 50Ω
- NÂ Female
- Frequency (MHz) – 800-1200
Click Here to get Data Sheet
For Orders & Info
Description
| ELECTRICAL MECHANICAL SPECIFICATIONS | |
| Frequency | 800-1200MHz |
| Nominal coupling | 20dB |
| Insertion Loss | ≤1.0dB |
| Coupling | ±1.0 |
| Return Loss (In & Out) | Minimum 18 dB |
| Return Loss (Coupling) | Minimum 18 dB |
| Impedance | 50Ω |
| Average Power Handling | 100Watt or more |
| Operating Temperature | -40~+80℃ |
| Input ports | N Male |
| Coupling ports | N Female |
