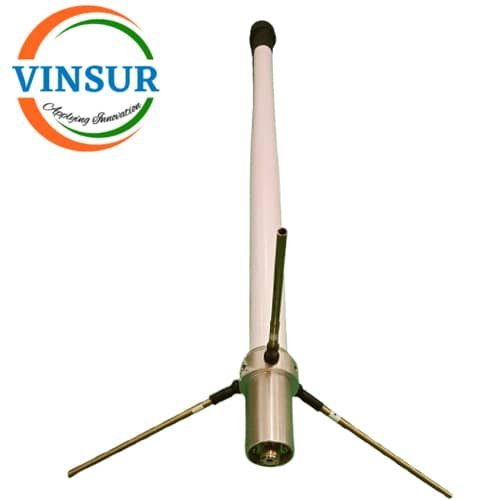

GROUND PLANE(GP) ANTENNA 400-520MHZ
APPLICATIONS:Â Â
- Two-Way Radio:Â Wireless walkie-talkies and amateur radio base stations.
- Aviation & Marine:Â Ground-to-air communication and shipboard mounting.
- Data Systems:Â Point-to-multipoint data and voice communication.
- Scanning & Jamming:Â Suitable for monitoring or jamming due to broad bandwidth capabilities.
For Orders & Info
Description
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | 400-520MHz |
| Gain | 5 dBi |
| Bandwidth | 20 MHz |
| Input Impedance | 50 Ohms |
| Radiation Pattern | Omni Directional |
| Vertical Beam-width –Half Power Points | 72 Degrees |
| VSWR – Better than | 1:1.5 |
| RF Power Handling Capacity | 200 Watts |
| Input Termination | UHF-Female |
| MECHANICAL SPECIFICATIONS | |
| Materials | Brass |
| Mounting Hardware | Stainless Steel |
| Gross Weight | 0.75Kgs. |
| Wind Rating | 200 Km/Hr. |
| Overall Length | 0.825(+0.025) Meter |
| Support Pipe Materials | Powder Coated MS |
| Maximum Mount Pipe Diameter | 52 mm (2 Inches) |
