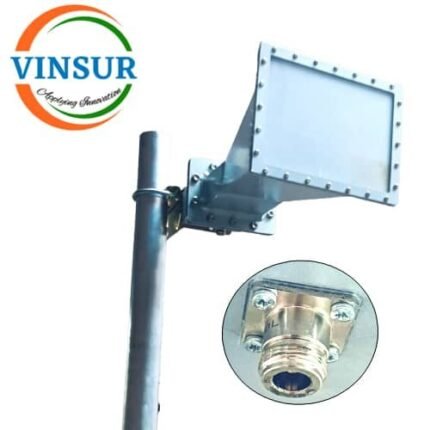

Horn Antenna(2.2-2.3GHz , 18dBi)
APPLICATIONS:Â Â
- Satellite & Deep Space: Used in ground stations and aboard satellites for long-distance communication and astronomical research.
- Radar Systems: Essential in speed enforcement cameras (police radar guns), weather monitoring, and military surveillance to track aircraft or ships.
- Short-Range Microwave Links: Used for terrestrial microwave relay links to transmit data between towers.
- Industrial Sensing: Employed in non-contact sensors for road surface inspection and automated systems like door openers.
For Orders & Info
Description
| SPECIFICATIONS | |
| Frequency Range | 2.2-2.3 GHz |
| Gain | 18dBi |
| VSWR | 1.25:1 |
| Polarization | Linear |
| Cross polarization | 50 dB |
| Connector | N-Female |
| Average Power | 250 W |
| Material | Aluminium |
| Size(L*W*H) | 358*162*123(±5) mm |
| Weight | 2 Kg |
