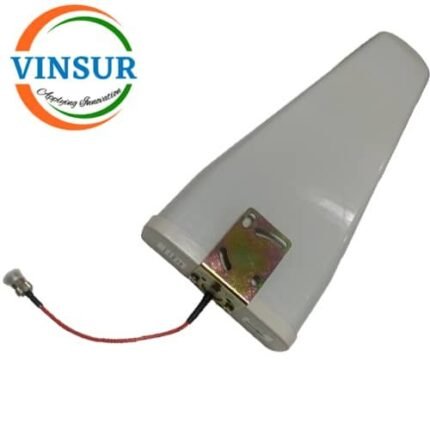

Log-Periodic Antenna(698-4200MHz , 14dBi)
APPLICATIONS:Â Â
- Outdoor Application
- Television Reception
- Radar and Microwave Applications
- Wideband Frequency Coverage
- Consistent Impedance and Gain Directional
- Radiation Pattern
For Orders & Info
Description
| Â SPECIFICATION | |
| Frequency range | 698-4200MHz |
| Gain | 14dbi |
| Input impedance | 50ohm |
| VSWR (Max) | <1.3/<1.5 |
| Polarization | Vertical |
| Front to back ratio | >15db/>18db |
| Max. power | 100W |
| connector | N female or customized |
| Dimension | 540*210*65 mm |
| Weight | 500 grams |
| Mounting | Pole mount |
| Cable Type | RG 402 |
| Mast diameter | 40 to 60mm |
| Operating temperature | -30 °C to 60 °C |
| humidity | 5-95% |
| Antenna Colour | Original ABS White |
