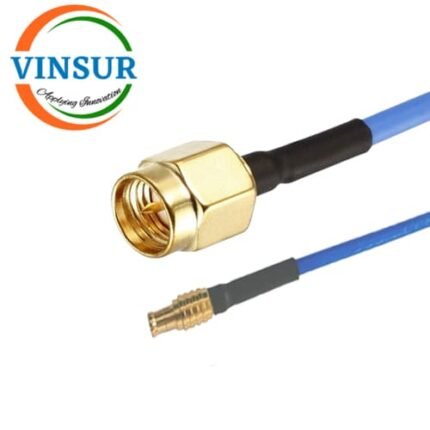

MCX Male Straight to SMA Male Straight for RG405 Cable of Length 62cm
P/N : 616104101-2C
- RF Cable Assembly
- MCX Cable Assembly
- MCX to SMA Cable Assembly
- RG405 T-Flex Cable
- MCX Male to SMA Male
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | MCX |
| Gender | Plug (male) |
| Orientation1 (body) | Right Angle |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| RF Series 2 | SMA |
| Orientation 2 (body) | Jack (Female) |
| Gender 2 | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Mounting Feature | Bulkhead |
| Impedance | 50 Ω |
| Frequency | DC-18GHz |
| VSWR | ≤1.2 |
| CABLE SPECIFICATION | |
| Cable Type | RG405 T-flex |
| Cable Diameter | 0.104” |
| Cut-off Frequency | 60GHz |
| Cable Length | 62 CM |
| Impedance | 50 Ω |
| Temperature rating | -65°C to +125°C |
