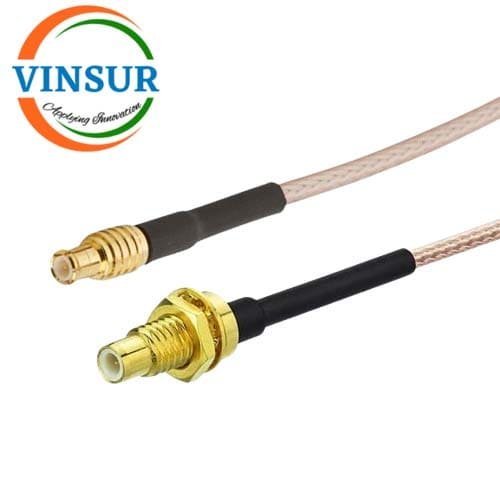

MCX Male Straight to SMB Female Straight Bulkhead for RG178 Cable of Length 95mm
P/N : VSW260186-CA
- RF Cable Assembly
- MCX Cable Assembly
- MCX to SMB Cable Assembly
- RG178 Cable
- MCX Male to SMB Female
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | MCX |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Material | Gold |
| Body Finish | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | SMB |
| Gender 2 | Jack (Female) |
| Orientation 2 (body) | Straight |
| Body Material | Gold |
| Body Finish | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Mounting Feature | Bulkhead |
| Impedance | 50Ω |
| Max Frequency | 2.5 to 3GHz |
| VSWR | ≤1.2 |
| CABLE SPECIFICATION | |
| Cable Type | RG178 |
| Cable Diameter | 1.60mm |
| Impedance | 50 Ω |
| Frequency | DC to 3Ghz |
| Length | 95MM |
| Temperature | -40°C to +85°C |
| Cable Type | RG178 |
