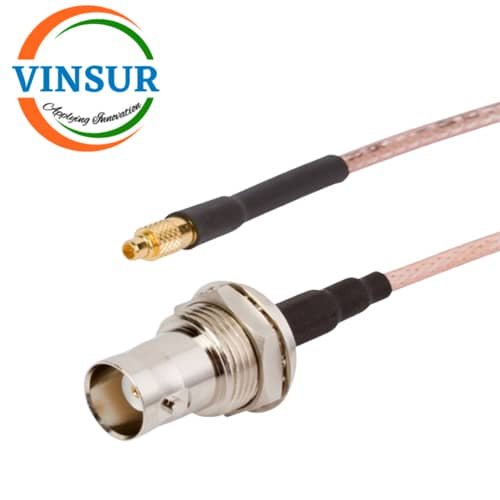

MMCX Male Straight to BNC Female Staright Bulk head for RG316 Cable of Length 20cm
P/N : VSW250017-CA
- RF Cable Assembly
- BNC Cable Assembly
- BNC to MMCX
- RG316 Cable
- BNC Female to MMCX MaleÂ
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | ||
| RF Series 1 | MMCX | |
| Gender | Plug (Male) | |
| Orientation1 (body) | Straight | |
| Body Finish | Gold | |
| Body Material | Brass | |
| Contact Finish | Gold | |
| Contact Material | Brass | |
| RF Series 2 | BNC | |
| Gender 2 | Jack (Female) | |
| Orientation 2 (body) | Straight | |
| Body Finish | Gold | |
| Body Material | Brass | |
| Contact Finish | Gold | |
| Contact Material | Brass | |
| Frequency | DC to 3GHz | |
| Impedance | 50 Ω | |
| VSWR | ≤1.2 | |
| CABLE SPECIFICATION | ||
| Cable Type | RG316 | |
| Cable Diameter | 2.49 ±0.1 | |
| Impedance | 50Ω ±2Ω | |
| Frequency | DC to 6Ghz | |
| Length | 200mm(20CM) | |
| Operating Temperature | -55°C to +200°C | |
