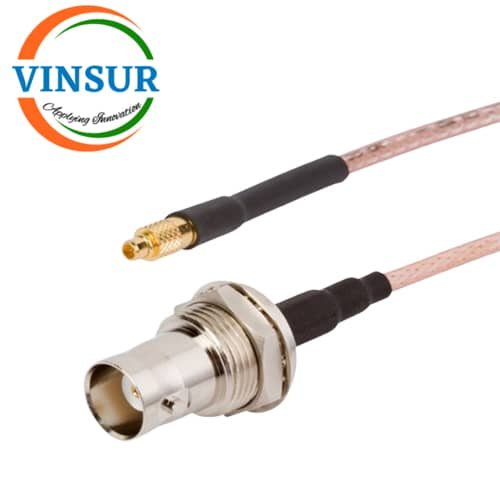

MMCX Male Straight to BNC Female Staright Bulk head for RG316 Cable of Length 6″
P/N : VSW250040-CA
- RF Cable Assembly
- BNC Cable Assembly
- BNC to MMCX
- RG316 Cable
- BNC Female to MMCX MaleÂ
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | BNC |
| Gender | Jack (Female) |
| Orientation1 (body) | Straight |
| Body Material | Nickel |
| Body Finish | Brass |
| Contact Finish | Gold |
| RF Series 2 | MMCX |
| Gender 2 | Plug(Male) |
| Orientation 2 (body) | Straight |
| Body Material | Gold |
| Body Finish | Brass |
| Contact Finish | Gold |
| Frequency | DC to 4Ghz |
| Impedance | 50 Ω |
| VSWR | ≤1.2 |
| CABLE SPECIFICATION | |
| Cable Type | RG316 |
| Cable Diameter | 2.49 ±0.1 |
| Max Frequency | 6GHz |
| Impedance | 50Ω |
| Cable length | 6 Inch(15cm) |
| Temperature Rating | -40°C ~ +85°C |
