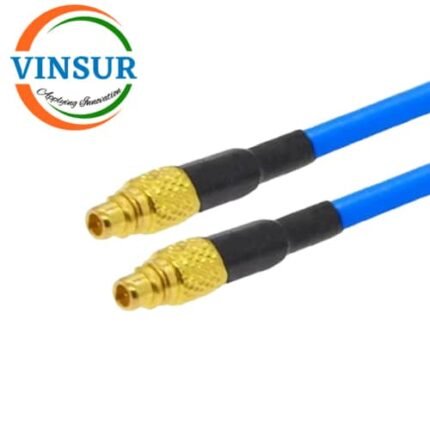

MMCX Male Straight to MMCX Male Right Angle for RG405 Cable of Length 315mm
P/N : 61710710L-31B
- RF Cable Assembly
- MMCX Cable Assembly
- MMCX to MMCX Cable Assembly
- RG405 Semi Flex Cable
- MMCX Male to MMCX Male
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | ||
| RF Series 1 | MMCX | |
| Gender | Plug(Male) | |
| Orientation1 (body) | Straight | |
| RF Series 2 | MMCX | |
| Gender 2 | Plug (Male) | |
| Orientation 2 (body) | Straight | |
| Body Finish | Gold | |
| Body Material | Brass | |
| Contact Finish | Gold | |
| Contact Material | Beryllium Copper | |
| Frequency | DC to 6Ghz | |
| Impedance | 50 Ω | |
| VSWR | ≤1.2 | |
| CABLE SPECIFICATION | ||
| Cable Type | RG405 Semi-flex | |
| Cable Diameter | 2.6 mm / 0.102 in | |
| Suitable for frequencies | up to 18 GHz | |
| Impedance | 50 Ω | |
| Length | 315mm | |
| Temperature rating | -40°C / +165°C | |
