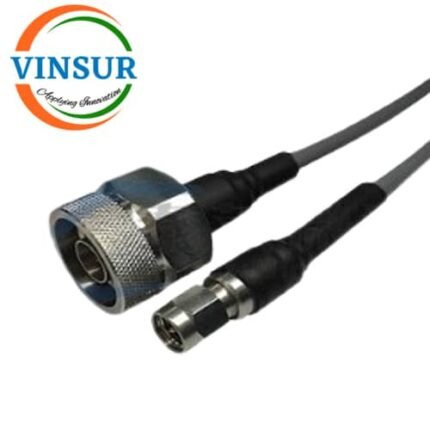

N Male Straight to SMA Male Straight RG405 T-flex Cable of Length 1M
P/N : VSW-NM-SMA-M-18GHz-CA
- RF Cable Assembly
- N-Type Cable Assembly
- N-Type to SMA Cable Assembly
- RG405 T-flex Cable
- N Male to SMA Male
Click Here To Download Datasheet
For Orders & Info
Description
| ELECTRICAL CHARACTERISTICS | ||||
| Parameter | Min | Typ | Max | Units |
| Frequency Range | DC | 18 | GHz | |
| VSWR | 1.25 | 1.3 | :1 | |
| Velocity of propagation | 82% | |||
| Shielding Effectiveness | 90 | dB | ||
| Capacitance | 81 | pF/m | ||
| Phase Stability Vs.Flexure@18GHz | ±2 | ° | ||
| Amplitude Stability Vs. Flexure@18GHz | ±0.03 | dB | ||
| Phase Stability Vs. Temperature | 550 | PPM | ||
| Description | Connector 1 | Connector 2 |
| Type | N Straight Male | SMA Straight Male |
| Contact Material And Plating | Brass, Gold | Brass, Go ld. |
| Dielectric Type | PTFE | PTFE |
| Body Material And Plating | Passivated Stainless Steel | Passivated Stainless Steel |
| Insertion Loss (dB Max) | 0.05*Sqrt(f_GHz) | 0.05*Sqrt(f_GHz) |
| Frequency | 2 GHz | 4 GHz | 6 GHz | 8 GHz | 10 GHz | 12 GHz | 16 GHz | 18 GHz |
| Insertion Loss (dB/m Max ) | 0.53 | 0.76 | 0.94 | 1.09 | 1.22 | 1.35 | 1.57 | 1.67 |
| RF Power CW (W Max.) | 359 | 255 | 204 | 176 | 157 | 142 | 122 | 115 |
| ENVIRONMENTAL & PHYSICAL CHARACTERISTICS | ||
| Description | Parameter | Units |
| Cable Diameter | 3.6 | Mm |
| Cable Jacket | FEP | |
| Min. Bending Radius | 18 | Mm |
| Typical Flex life | 50000 | |
| Operating Temperature | -55 to +125 | ℃ |
| Storage Temperature | -55 to +165 | ℃ |
| Cable Type | T-flex RG405 Cable | |
