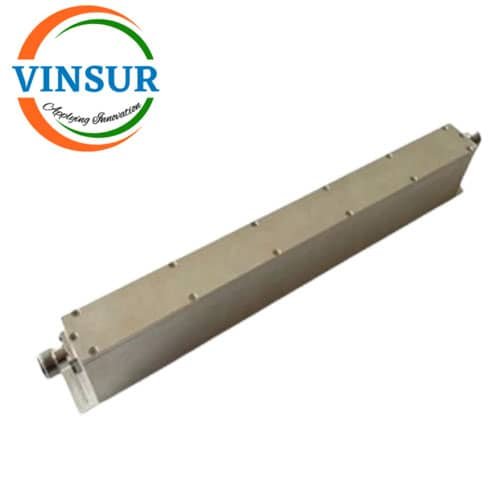

Passive Band Stop Filter
P/N : VSW-BSF-1012-NF
- RF Filter
- Passive Band Stop Filter
- 50Ω
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | |
| Stop Band Frequency | 1029-1031MHz & 1089-1091MHz |
| Pass Band Frequency | 960-1012MHz & 1048-1072MHz & 1108-1250MHz |
| Stop Band Attenuation | ≥50dB |
| Pass Band Insertion Loss | ≤1.5dB |
| Pass Band VSWR | ≤1.4:1 |
| Power Rating | 200W(Average) |
| Impedance | 50 ohm |
| Operating Temperature | -5～+55℃ |
| Connector | N Female |
| Colour | Black |
| Relative Humidity | 5%-95% |
| Dimensions | See Mechanical Drawing |
| Application | Indoor IP60 |
