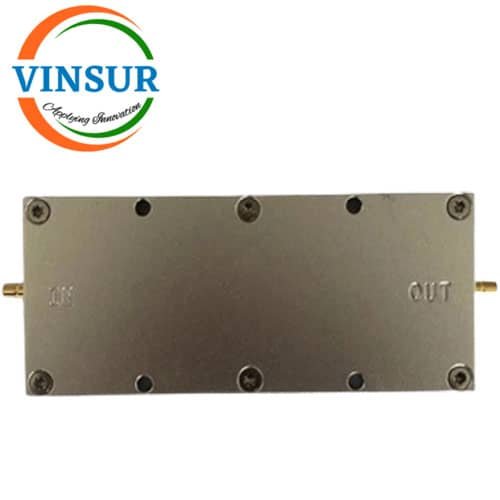

RF Cavity Band Pass Filter (153-162MHz)
P/N : VSW-BPF-1516-SMAF
- RF Filter
- RF Cavity Band Pass Filter
- 50Ω
- Frequency(MHz) – 153-162
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | |
| Frequency(MHz) | 153-162MHz |
| Insertion Loss (dB） | ≤1.5 |
| Return Loss(dB) | ≥15 |
| Rejection dB） | ≥30@F0±25MHz |
| Impedance | 50 ohm |
| Power Rating(W) | 50 (Average Per Port) |
| Operating Temperature (deg) | -20～+55℃ |
| Connector | SMA-female |
| Finish | Silver-plated |
| Weight(kg) | 2.5KG(MAX) |
| Relative Humidity | 5%-95% |
