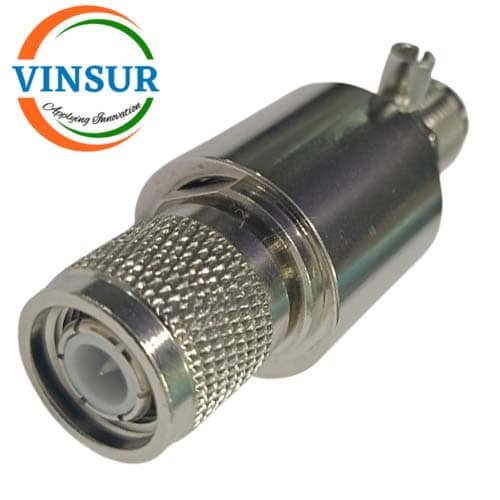

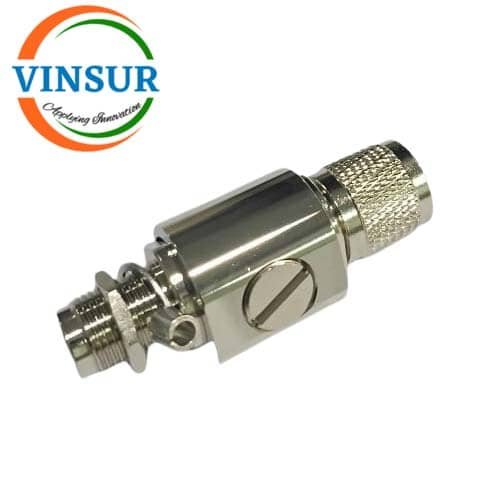

RF Coaxial Surge Arrester(TNC Male to Female Bulk head)
P/N : VSW-TNC-MF-SGA-ADP
- RF Lightning Arresters
- TNC
- Male to Female
- Bulk head
- Impedance – 50Ω
- Frequency (GHz) – DC-3
Click Here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | TNC |
| Gender1 | Plug(Male) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Adapter Side 2 Series | TNC |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Mounting Features | Bulkhead |
| Impedance (Ohms) | 50Ω |
| Voltage Protection Level(Up) | ≤600V |
| Maximum output power        | 100W |
| Insertion Loss(dB)Â Â Â Â Â Â | <0.2 |
| Max Frequency (GHz)Â Â Â Â Â | DC to 3GHz |
| VSWR(Max) | ≤1.18 |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +85°C |
