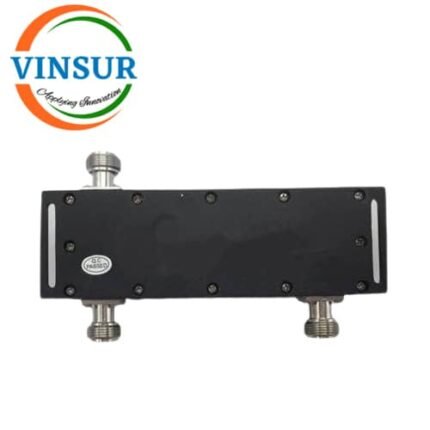

RF Combiner(1:2 Way 500-1500MHz N Female)
P/N : VSW-2:2RC-4G-1.5
- RF Combiner
- 50Ω
- 1:2 Way
- N Female
- Frequency (MHz) – 500-1500
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATIONS | |
| Frequency Range | 500-1500MHz |
| Insertion Loss | ≤ 0.8dB |
| Isolation | ≥25dB |
| Return Loss | ≤-19dB / 1.25 |
| Impedance | 50Ω |
| PIM (IMD3) | ≤-150dBc @ +43dBm×2 |
| Power Handling | 100 W |
| Operating Temperature | -25 to +55℃ |
| Relative Humidity | 0 to 95% |
| Applied Environment | Indoor or Outdoor / IP 65 |
