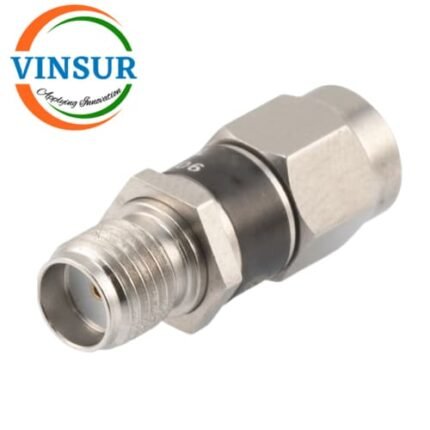

RF Fixed Attenuator (2W 6dB DC-18GHz SMA Male to Female)
P/N : VSW250004-ATT
- RF Fixed Attenuator
- 50Ω
- SMA Male to Female
- 2WÂ
- Attenuation(dB) – 6dB
- Max Frequency (GHz) – DC-18
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | |
| Type | RF Fixed Attenuator |
| Gender1 | Male |
| Connector 1 Series | SMA |
| Gender2 | Female |
| Connector 1 Series | SMA |
| Gender2 | Female |
| Impedance (Ohms) | 50 |
| Power Input | 2Watt |
| Attenuation | 6dB |
| Attenuation Accuracy | 0.5dB |
| VSWR | <1.30:1 |
| Body Material | Stainless Steel |
| Contact Material | Beryllium copper gold plated |
| Dielectric | PTFE |
| Max Frequency               | DC to 18GHz |
| Min. Temp. (Celsius) | -55°C |
| Max. Temp. (Celsius) | +125°C |
