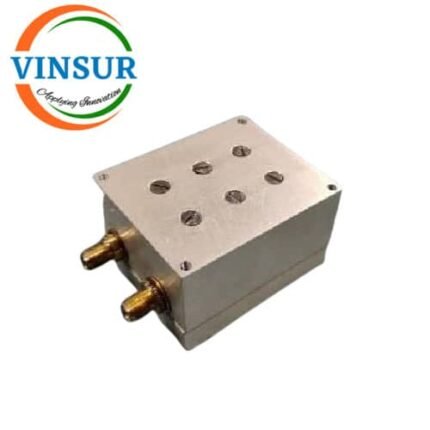

RF S-Band Cavity Filter (2700 to 2900MHz)
P/N : VSW-SBCF-2.8
- RF Filter
- S-Band Cavity Filter
- 50Ω
- Frequency(MHz) – 2700 to 2900
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | |
| Centre Frequency (@Fc) | 2800 MHz |
| Pass Band | 2700 – 2900 MHz |
| Insertion loss @Fc(2800MHz) | 1.00 dB max |
| Insertion loss over the band(2700-2900MHz) | 1.4 dB max |
| Ripple over the band | +/_0.25 dB |
| Return Loss @ Fc | 18 dB min |
| Rejection | 30.00 dB @ 2650 MHz min
30.00 dB @ 2950 MHz min |
| Power Handling | 20 dBm Min |
| Impedance | 50 Ohms |
| Connector | SMA – Female |
| Operating Temperature | -20 °C to +55 °C |
| RoHS | Compliance |
| Dimension (L x W x H) mm | (50 x 42 x 29.50)mm drawing enclosed |
