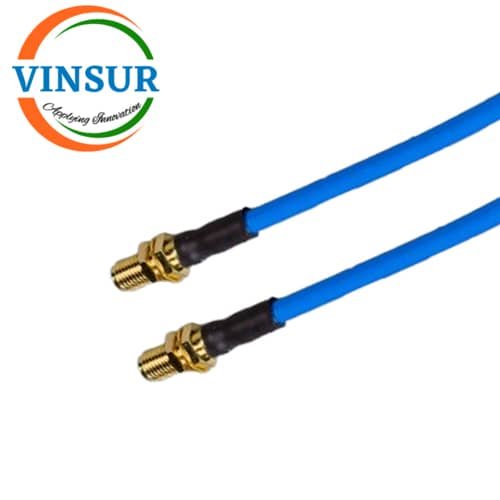

SMA Female Bulkhead Straight to SMA Female Bulkhead Straight for RG402 Cable of Length 1M
P/N : VSW250107-CA
- RF Cable Assembly
- SMA Cable Assembly
- SMA to SMA Cable Assembly
- RG402 Semi Flex Cable
- SMA Male to SMA MaleÂ
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Jack (Female) |
| Orientation1 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | SMA |
| Orientation 2 (body) | Jack (Female) |
| Gender 2 | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Mounting Feature | Bulkhead |
| Impedance | 50 Ω |
| Frequency | DC-18GHz |
| VSWR | ≤1.2 |
| CABLE SPECIFICATION | |
| Cable Type | RG402 |
| Cable Diameter | 4.10 mm / 0.161 in |
| Suitable for frequencies | up to 20 GHz |
| Cable Length | 1 Meter(1000MM) |
| Impedance | 50 Ω |
| Temperature rating | -40 / +165°C |
