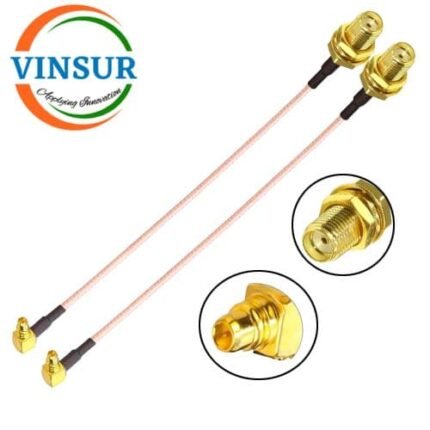

SMA Female Straight Bulk head to MMCX Male Right Angle for RG316 Double Shield Cable of Length 210mm
P/N : VSW260047-CA
- RF Cable Assembly
- MMCX Cable Assembly
- MMCX to SMA Cable Assembly
- RG316 DS Cable
- MMCX Male R/A to SMA Female
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | MMCX |
| Gender | Plug(Male) |
| Orientation1 (body) | Right Angle |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | SMA |
| Gender 2 | Jack(Female) |
| Orientation 2 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Mounting Feature | Bulk head |
| Frequency | DC to 3Ghz |
| Impedance | 50 Ohms |
| CABLE SPECIFICATION | |
| Cable Type | For RG316 Double shielded |
| Impedance | 50Ω |
| Frequency | 6 GHz |
| Jacket | FEB Brown |
| Min. Bending Radius | 15.3 mm |
| Length | 210mm |
| Temp. Range | 25°C to +85°C |
