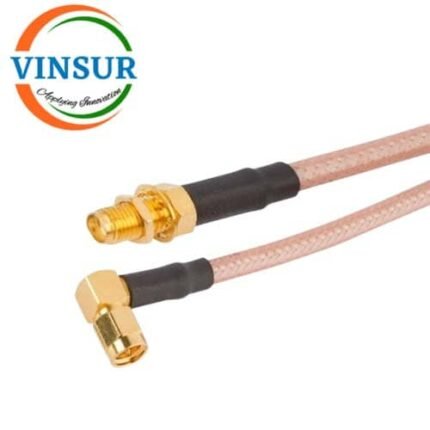

SMA Male Right Angle to SMA Female Staright Bulkhead RG142 Cable of length 6″ Inch
P/N : VSW250103-CA
- RF Cable Assembly
- SMA Cable Assembly
- SMA to SMA Cable Assembly
- RG142 Cable
- SMA Male R/A to SMA Female
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug(Male) |
| Orientation1 (body) | Right Angle |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | SMA |
| Gender 2 | Jack(Female) |
| Orientation 2 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Mounting Features | Bulkhead |
| Frequency | DC to 10Ghz |
| VSWR | ≤1.2 |
| CABLE SPECIFICATION | |
| Cable Type | RG142 |
| Cable Diameter | 0.195(4.95mm) |
| Max Frequency | 10GHz |
| Weight | 43 lb/ft |
| Impedance | 50Ω |
| Cable Length | 6 Inch |
| Temperature Rating | -40°C ~ +85°C |
