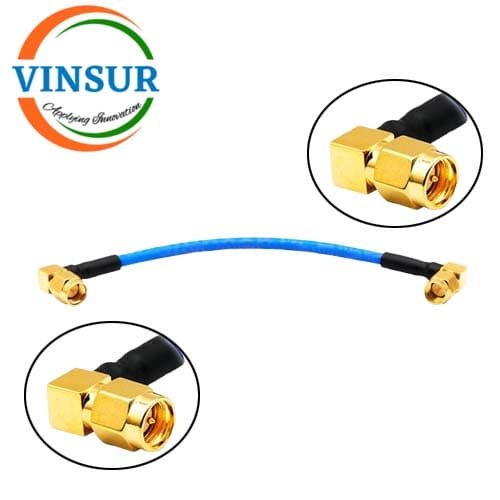

SMA Male Right Angle to SMA Male Right Angle for RG405 Cable of Length 150mm
P/N : VSW260152-CA
- RF Cable Assembly
- SMA Cable Assembly
- SMA to SMA Cable Assembly
- RG405 Semi Flex Cable
- SMA Male R/A to SMA Male R/A
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | SMA |
| Gender 1 | Plug(Male) |
| Orientation | Right Angle |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| RF Series 2 | SMA |
| Gender 2 | Plug(Male) |
| Orientation | Right Angle |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Impedance | 50Ω |
| VSWR | ≤1.25 |
| Frequency | 18GHz |
| CABLE SPECIFICATION | |
| Cable Type | RG405(0.86) |
| Cable Dai | 2.6 mm / 0.102 in |
| Impedance                      | 50 ± 2 Ω |
| Suitable for frequencies | up to 18 GHz |
| Weight | 18 kg/km |
| Temperature rating | -40 / +165°C |
| Cable Length | 150mm |
