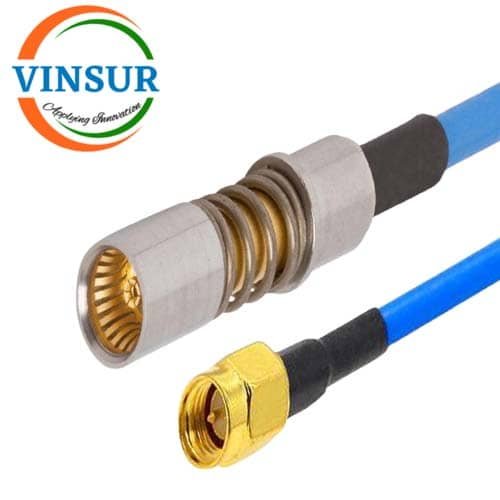

SMA Male Straight to BMA Female Staright for RG402 Cable of Length 60cm
P/N : VSW250100-CA
- RF Cable Assembly
- SMA Cable Assembly
- SMA to BMA Cable Assembly
- RG402 Cable
- SMA Male to BMA Female
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug (Male) |
| Orientation1 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | BMA |
| Orientation 2 (body) | Straight |
| Gender 2 | Jack(Female) |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Frequency | DC-18Ghz |
| Impedance | 50 Ω |
| VSWR | ≤1.2 |
| CABLE SPECIFICATION | |
| Cable Type | RG402(.141) |
| Cable Diameter | 4.10 mm / 0.161 in |
| Suitable for frequencies | Up to 20 GHz |
| Cable Length | 60CM |
| Weight | 52 kg/km |
| Impedance | 50Ω |
| Temperature Rating | -40°C ~ +85°C |
