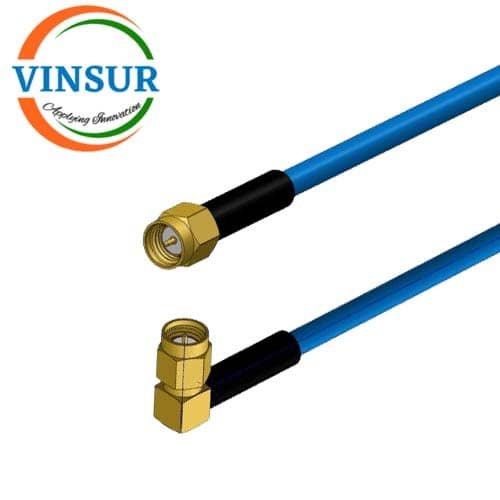

SMA Male Straight to SMA Male Right Angle for RG402 T-flex Cable of Length 38″ Inch
P/N : VSW-614104306B-38E
- RF Cable Assembly
- SMA Cable Assembly
- SMA to SMA Cable Assembly
- RG402 T-Flex Cable
- SMA Male to SMA Male R/A
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | SMA |
| Gender 2 | Plug(Male) |
| Orientation 2 (body) | Right Angle |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| VSWR | ≤1.25 |
| Frequency | DC to 18Ghz |
| Impedance | 50 Ω |
| CABLE SPECIFICATION | |
| Cable Type | RG402 T-flex |
| Cable Diameter | 0.160’’(4.064mm) |
| Suitable for frequencies | up to 34 GHz |
| Cable Length | 38 Inch |
| Impedance | 50 Ω |
| Temperature rating | -40 / +165°C |
