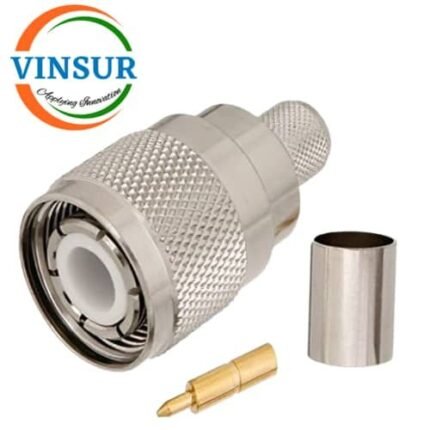

VSW-11E11917– RF CONNECTOR-50 OHMS,HN-TYPE MALE STRAIGHT CRIMP TYPE FOR LMR-400 CABLE
APPLICATIONS:Â Â
- Instrumentation
- High-Voltage Test Equipment
- Airframe
- Radiation Detection
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | LMR400 |
| Mounting Features | – |
| Max Frequency (GHz) | DC – 500 MHz |
| VSWR | ≤1.25 |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65° |
| Max. Temp. (Celsius) | 165° |
