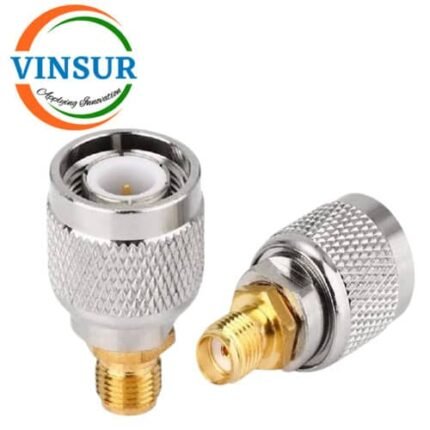

VSW-41210421-ADP — RF ADAPTER – 50 OHMS, TNC MALE TO SMA FEMALE STRAIGHT ADAPTER
P/N :-VSW-41210421-ADP
- RF Adapter
- SMA Adapters
- SMA to TNC Adapters
- Male to Female
-  50Ω
- Max Frequency (GHz) -DC~6GHz
Click Here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | SMA |
| Gender1 | Jack(Female) |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Adapter Side 2 Series | TNC |
| Gender2 | Plug(Male) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Max Frequency (GHz)Â Â Â Â Â | DC to 6 GHz |
| VSWR(Max) | ≤1.2 |
| Min. Temp. (Celsius) | -55°C |
| Max. Temp. (Celsius) | +155°C |
