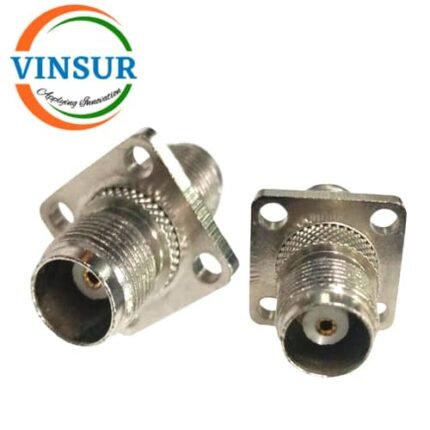

VSW-41220221 — RF ADAPTERS – 50 OHMS , TNC FEMALE STRAIGHT TO TNC FEMALE STARIGHT 4-HOLE FLANGE ADAPTER
P/N :-VSW-41220221
- RF Adapter
- TNC Adapters
- TNC to TNC Adapters
- Female to Female
-  50Ω
- Max Frequency (GHz) -DC~ 6GHz
Click here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | TNC |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Adapter Side 2 Series | TNC |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Coupling Mechanism | Threaded |
| Mounting Feature | 4-Hole Flange |
| Max Frequency (GHz)Â Â Â Â Â | DC to 6Ghz |
| VSWR | ≤1.2 |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | +165 |
