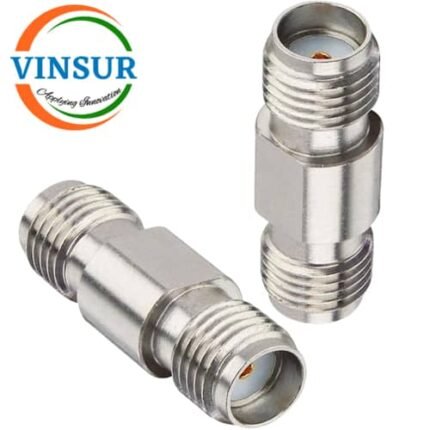

VSW250018-AD — RF ADAPTER – 50 OHMS, SMA FEMALE STRAIGHT TO SMA FEMALE STRAIGHT ADAPTER (27GHz)
P/N :-VSW250018-AD
- RF Adapter
- SMA Adapters
- SMA to SMA Adapters
- Female to Female
-  50Ω
- Max Frequency (GHz) -DC~27GHz
Click Here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | SMA |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Adapter Side 2 Series | SMA |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Insulator Material | PEI |
| Max Frequency (GHz)Â Â Â Â Â | DC to 27GHz |
| VSWR(Max) | 1.25:1 |
| Mating Cycles | >500 |
| Min. Temp. (Celsius) | -55°C |
| Max. Temp. (Celsius) | +165°C |
