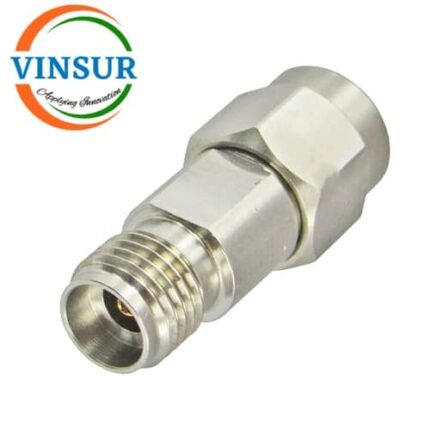

VSW250019-AD — RF ADAPTER – 50 OHMS, 2.92 FEMALE STRAIGHT TO SMA MALE STRAIGHT ADAPTER (26.5GHz)
P/N :VSW250019-AD
- RF Adapter
- 2.92mm Adapters
- 2.92mm SMA Adapters
- Female to Female
- 50Ω
- Max Frequency (GHz) -DC~26.5GHz
Click here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | SMA |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Adapter Side 2 Series | SMA |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Insulator Material | PEI & PTFE |
| Max Frequency (GHz)Â Â Â Â Â | DC to 26.5GHz |
| VSWR(Max) | ≤1.25 |
| Durability Matings | >500 |
| Min. Temp. (Celsius) | -45°C |
| Max. Temp. (Celsius) | +125°C |
