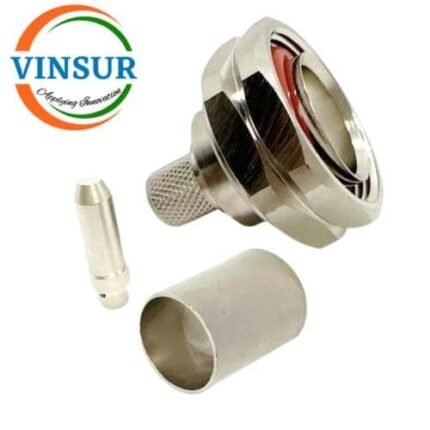

VSW250023-CN — RF CONNECTOR – 50 OHMS 7-16 MALE STRAIGHT CRIMP TYPE FOR RG393 CABLE
Applications:
- Cellular Networks:Â Connecting base station antennas, especially where multiple transmitters share an antenna (co-location), due to low PIM.
- Broadcast Communications:Â Ideal for radio and TV broadcasting systems requiring high power and reliability.
- Radar Systems: Used in radar installations for robust, high-power signal transfer.
- Industrial/Military:Â Their durability and weather resistance also make them suitable for other high-voltage or outdoor industrial uses.Â
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Body Finish | Tri-Metal plated |
| Body Material | Brass |
| Contact Finish | Silver plated |
| Contact Material | Brass |
| Crimping suite Base Material | Copper alloy |
| Crimping Plated | Nickel plated |
| Insulator Material | PTFE |
| Cable Type | RG393 |
| Withstand Voltage | 4000V rms |
| Working Voltage | 2700V |
| Max Frequency (GHz) | DC – 3GHz |
| VSWR | ≤1.2 |
| Polarity | Standard |
| Min. Temp. (Celsius) | -55°C to 155°C |
| Durability(matings) | ＞500 |
| Center contact | ≤0.4mΩ |
| Outer contact | ≤1.5mΩ |
| Insulation resistance | ≥10000MΩ |
