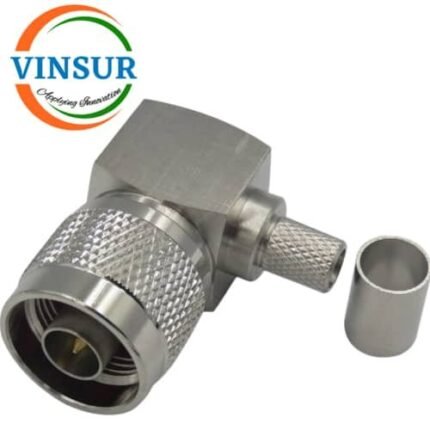

VSW250030-CN — RF CONNECTOR — 50 OHMS N MALE RIGHT ANGLE CRIMP TYPE FOR LMR400,RG8,RG214,RG213,RG223 Cable
Applications
- Base Stations
- Antennas
- Telecommunications
- Instrumentation
- PC/LAN
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Right Angle |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Crimp |
| Insulator Material | PTFE |
| Cable Type | LMR400,RG8,RG214,RG213,RG223 |
| Coupling Mechanism | Threaded |
| Max Frequency (GHz) | DC to 11GHz |
| VSWR | ≤1.2 |
| Power Handling | Up to 100W |
| Polarity | Standard |
| Thread Direction | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | +165 |
