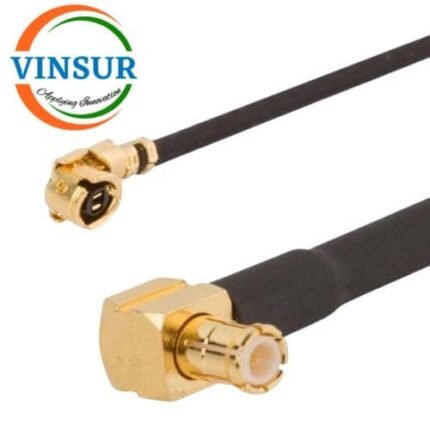

VSW250061-CA — AMC Male Right Angle to MCX Male Right Angle for RG1.13 Cable of Length 250mm
P/N : VSW250061-CA
- RF Cable Assembly
- MCX Cable Assembly
- MCX to AMC Cable Assembly
- RG1.13 Cable
- MCX Male R/A to AMC Male R/A
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | MCX |
| Gender | Jack(Female) |
| Orientation1 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Mounting Feature | Bulk Head |
| RF Series 2 | AMC |
| Gender 2 | Plug(Male) |
| Orientation 2 (body) | Right Angle |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Frequency | DC to 3 GHz |
| Impedance | 50 Ω |
| CABLE SPECIFICATION | |
| Cable Type | 1.13 mm Micro-Cable |
| Cable Diameter | 1.13mm |
| Frequency | DC to 6 GHz |
| Impedance | 50 Ω |
| Length | 250mm |
| Temperature | -40°C to +90°C |
