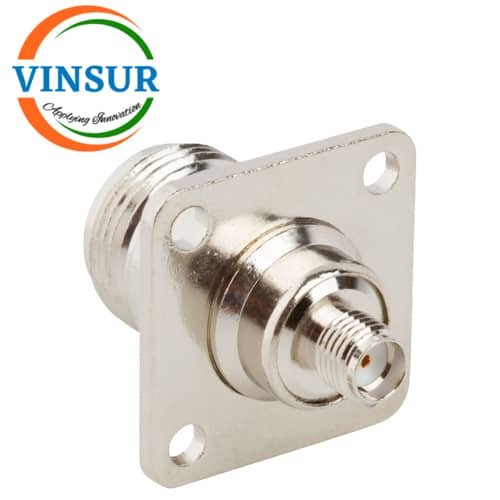

VSW260015-AD — RF ADAPTER – 50 OHMS, SMA FEMALE TO N FEMALE STRAIGHT 4-HOLE FLANGE ADAPTERS
P/N :-VSW260015-AD
- RF Adapter
- N-Type Adapters
- N-Type to SMA Adapters
- Female to Female
-  50Ω
- Max Frequency (GHz) -DC~18GHz
Click here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | N-type |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Passivated Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Adapter Side 2 Series | SMA |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Passivated Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Mounting Features | 4-Hole Flange |
| Impedance (Ohms) | 50Ω |
| Insulator Material | PTFE |
| Max Frequency (GHz)Â Â Â Â Â | DC to 18GHz |
| VSWR(Max) | ≤1.15:1 |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +125°C |
