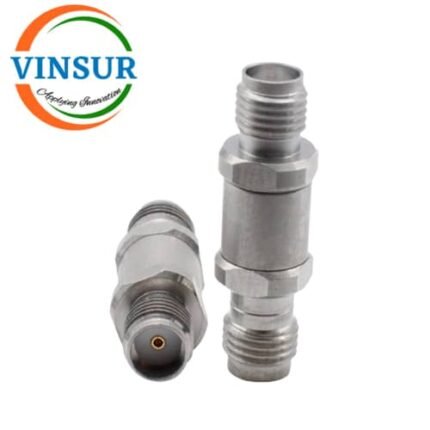

VSW260016-AD-RF ADAPTERS – 50 OHMS 2.4MM FEMALE STRAIGHT TO SMA FEMALE STRAIGHT ADAPTER
P/N :VSW260016-AD
- RF Adapter
- 2.4mm Adapters
- 2.4mm SMAÂ Adapters
- Female to Female
- 50Ω
- Max Frequency (GHz) -DC~26.5GHz
Click here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | 2.4mm |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Adapter Side 2 Series | SMA |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Body Plating | Nickel |
| Body Material | Passivated Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Insulator Material | PTFE |
| Max Frequency (GHz)Â Â Â Â Â | DC to 26.5GHz |
| VSWR(Max) | ≤1.2:1 |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +125°C |
