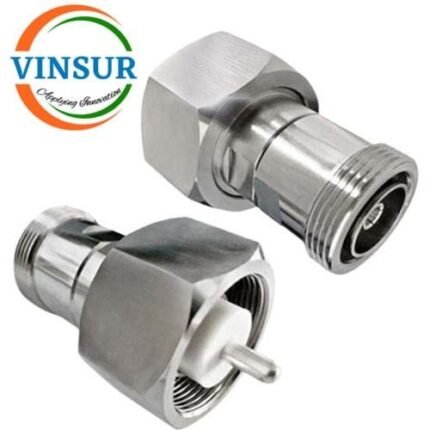

VSW260022-AD — RF ADAPTER – 50 OHMS 7-16 FEMALE TO LC MALE STRAIGHT ADAPTER
P/N :VSW260022-AD
- RF Adapter
- 7-16 Adapters
- 7-16 to LC Adapters
- Female to Male
- 50Ω
- Max Frequency (GHz) -DC11GHz
Click here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | 7/16 |
| Adapter Type | Between-Series |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel Plated/Alloy plated |
| Body Material | Brass |
| Inner Pin Material & Plating | Brass, Gold Plated |
| Resilient Contact Material | Beryllium Copper |
| Resilient Contact Plating | Gold Plated |
| Socket Contact | Beryllium or tin bronze |
| Adapter Side 2 Series | LC |
| Gender2 | Plug (Male) |
| Orientation | Straight |
| Body Plating | Nickel Plated/Alloy plated |
| Body Material | Brass |
| Inner Pin Material & Plating | Brass, Gold Plated |
| Resilient Contact Material | Beryllium Copper |
| Resilient Contact Plating | Gold Plated |
| Socket Contact | Beryllium or tin bronze |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Average power | 3KW max |
| Insulation resistance | ≥10000M OHM |
| Max Frequency (GHz) | DC to 11GHz |
| VSWR(Max) | ≤ 1.10 |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +85°C |
