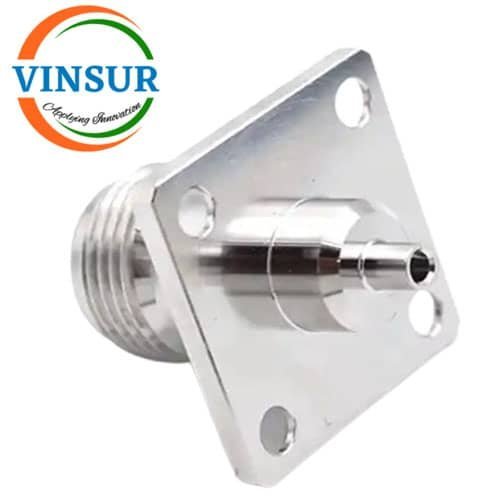

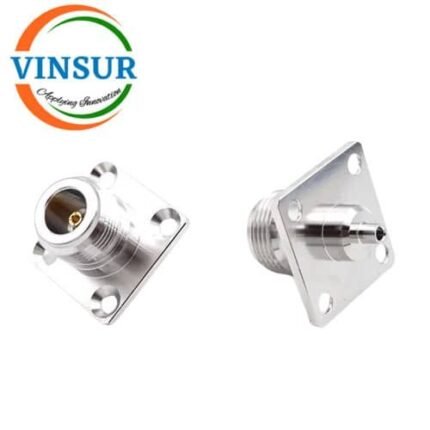

1112143C — RF CONNECTOR – 50OHMS , N FEMALE , STRAIGHT ,4-HOLE FLANGE MOUNT , SOLDER TYPE , RG405 CABLE
Applications
- Base Stations
- Antennas
- Telecommunications
- Instrumentation
- PC/LAN
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG405(0.086) |
| VSWR | ≤1.3 Max |
| Max Frequency (GHz) | 11 |
| Mounting Feature | 4-hole flange |
| Polarity | Standard |
| Thread Direction | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
