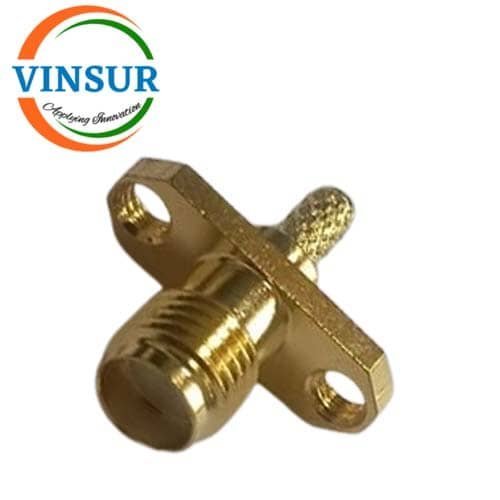

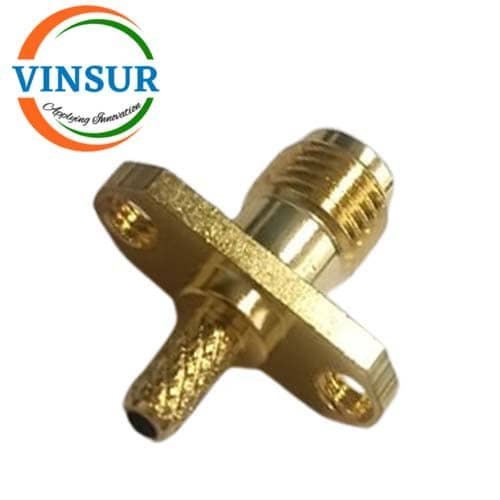

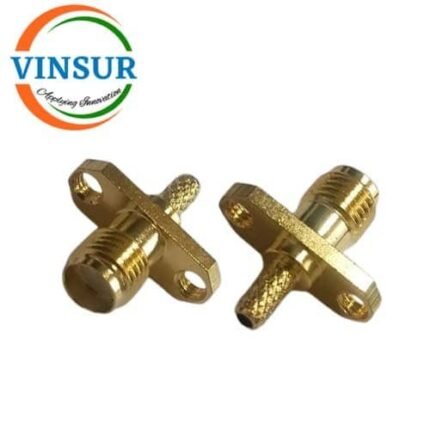

VSW250021-CN — SMA MALE STRAIGHT 2 HOLE FLANGE CRIMP TYPE RG316 CABLE (WITH M3 THREADED HOLE CONNECTOR)
Applications
- Base Stations
- Antennas
- Telecommunications
- Instrumentation
- PC/LAN
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG316 |
| Mounting Features | 2-Hole Flange |
| Max Frequency (GHz) | DC to 12.4GHz |
| VSWR | 1.20 max @DC~6GHz |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65° |
| Max. Temp. (Celsius) | 165° |
