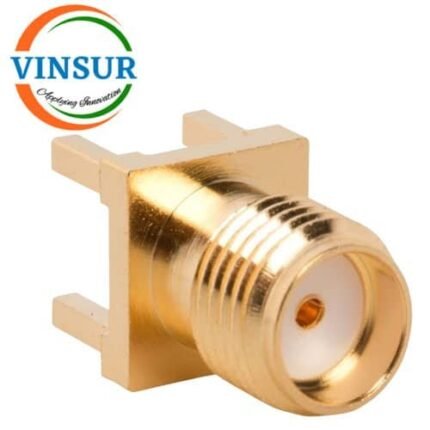

11521040 — RF CONNECTOR – 50 OHMS , SMA FEMALE , STRAIGHT , PCB-THROUGH HOLE, ROUND POST
Applications
- Base Stations
- Antennas
- Telecommunications
- Instrumentation
- PC/LAN
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | PCB – Through Hole |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination Style | Solder |
| Mounting Features | – |
| Insulator Material | PTFE |
| VSWR | ≤1.25 |
| Max Frequency (GHz) | 12 |
| Polarity | Standard |
| Extended Dielectric Length (mm) | – |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
