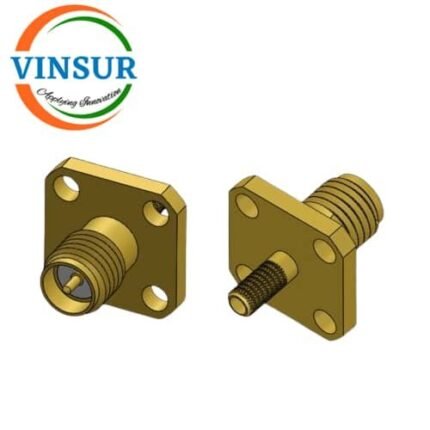

11921414 — RF CONNECTOR – 50 OHM RP SMA FEMALE STRAIGHT 4 HOLE FLANGE CRIMP TYPE RG316-174 CABLE
Applications
- Base Stations
- Antennas
- Telecommunications
- Instrumentation
- PC/LAN
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack(Female) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG316/RG174 |
| Mounting Features | 4-Hole Flange |
| Max Frequency (GHz) | DC to 6GHz |
| VSWR | ≤1.2 |
| Polarity | Reverse Polarity |
| Min. Temp. (Celsius) | -65° |
| Max. Temp. (Celsius) | 165° |
