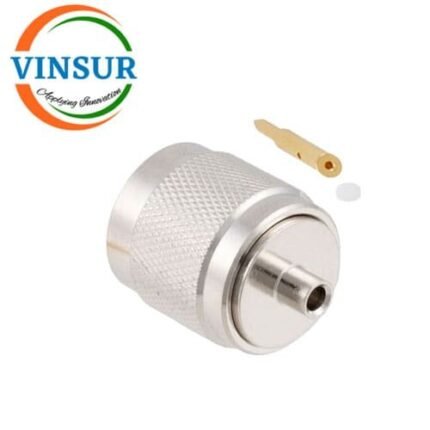

1121101C — RF CONNECTOR – 50 OHMS , TNC MALE , STRAIGHT , SOLDER TYPE , RG405 (0.086 INCH) CABLE
Applications
- Base Stations
- Antennas
- Telecommunications
- Instrumentation
- PC/LAN
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG405(0.086) |
| Mounting Features | – |
| Max Frequency (GHz) | DC to 6GHz |
| VSWR | ≤1.2 |
| Polarity | Standard |
| Min. Temp. (Celsius) |  -65° |
| Max. Temp. (Celsius) | +165° |
