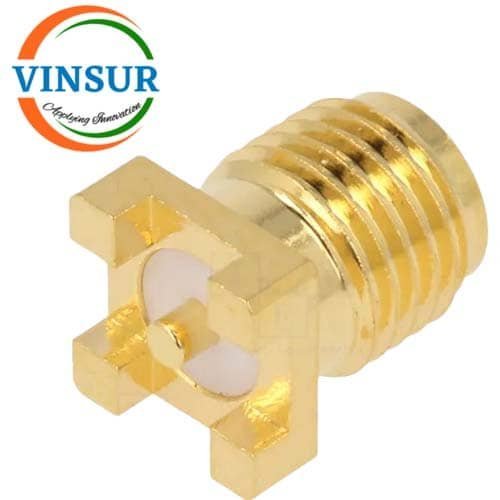

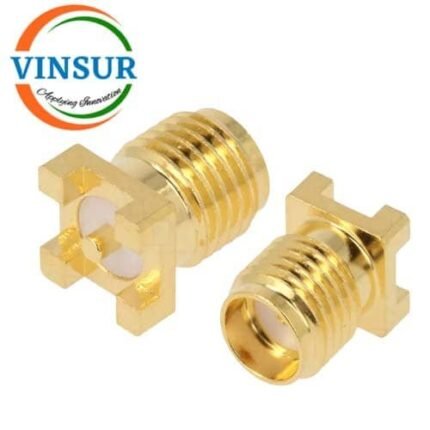

11521060 — RF CONNECTOR – 50 OHMS , SMA FEMALE , STRAIGHT , PCB-SURFACE MOUNT
Applications
- Base Stations
- Antennas
- Telecommunications
- Instrumentation
- PC/LAN
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | PCB – Surface Mount |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Coupling Mechanism | Threaded |
| VSWR | ≤1.25:1 |
| Max Frequency (GHz) | DC to 6Ghz |
| Polarity | Standard |
| Thread Direction | Standard |
| Min. Temp. (Celsius) | -45° |
| Max. Temp. (Celsius) | 125° |
