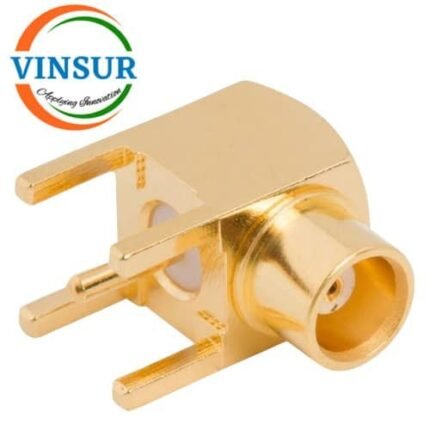

11722040 — RF CONNECTOR – 50 OHMS ,MCX FEMALE , RIGHT ANGLE , PCB-THROUGH HOLE SOLDER LEG
Applications
- Base Stations
- Antennas
- Telecommunications
- Instrumentation
- PC/LAN
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) Socket |
| Orientation | Right Angle |
| Termination Style | Through Hole Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Mounting Type | Through Hole, Right Angle |
| Mounting Features | – |
| Insulator Material | PTFE |
| VSWR | 1.40 @ 6GHz |
| Max Frequency (GHz) | DC to 6GHz |
| Voltage Rating | 170 VRMS @ Sea Level |
| Min. Temp. (Celsius) | -55°C |
| Max. Temp. (Celsius) | 105°C |
