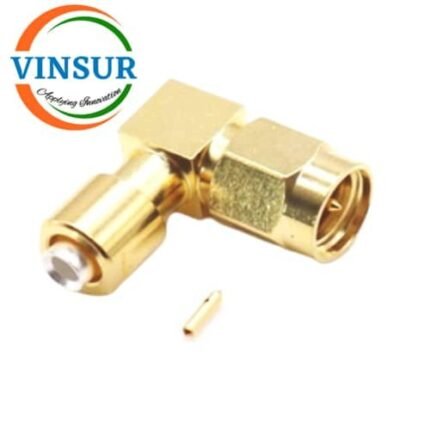

VSW-1151293D-55– RF CONNECTOR – 50OHMS , SMA MALE , RIGHT ANGLE , SOLDER TYPE , FOR RG402(.141) CABLE
Applications
- Base Stations
- Antennas
- Telecommunications
- Instrumentation
- PC/LAN
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Right Angle |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Centre Conductor | Beryllium Bronze, Gold plating |
| Body Material | Brass, Gold plating |
| Bushing | Brass, Silver plating |
| VSWR | 1.35 max |
| Insulator Material | PTFE |
| Cable Type | RG402(0.141) |
| Max Frequency (GHz) | DC to 18 GHz |
| Power Handling | Â Up to 100W |
| Polarity | Standard |
| Thread Direction | Standard |
| Insulation Resistance | ≥5000MΩ |
| Dielectric withstand voltage | 1000V |
